SN74LVC1G11 Single 3-Input Positive-AND Gate

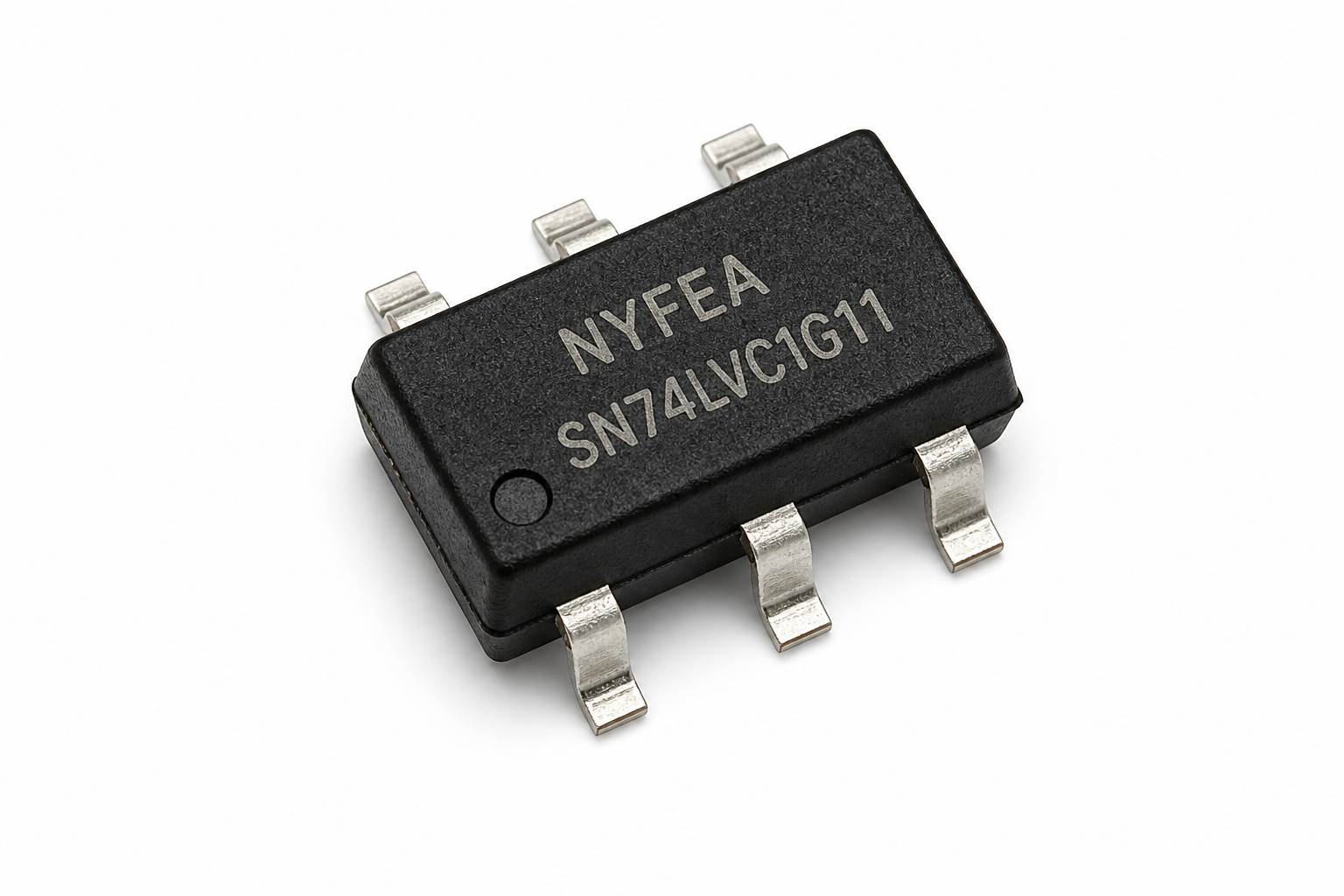

NYFEA SN74LVC1G11 is a single 3-input positive-AND gate specified for 1.65 V to 5.5 V operation. Its three inputs accept voltages up to 5.5 V, the device supports Ioff partial-power-down operation, and green SOT23-6 and SC70-6 package options are listed.
Product scope: In positive logic, the device implements Y = A · B · C. Y is HIGH only when A, B and C are all HIGH. It is a push-pull combinational gate, not a Schmitt-trigger input, open-drain output, tri-state buffer or analog switch.
Use the current controlled PDF for threshold limits, output loading, switching conditions, package tolerances, tape orientation and production-release decisions.
Product Overview and Selection Scope
SN74LVC1G11 integrates one 3-input positive-AND gate. Its output is HIGH only when A, B and C are simultaneously HIGH. The specified operating supply is 1.65 V to 5.5 V, while each input may be driven from 0 V to 5.5 V under the recommended operating conditions. Input tolerance can assist mixed-voltage control paths, but receiving thresholds, output swing, power sequencing and current paths still require system-level validation.
Three-condition qualification
Y asserts only after all three positive-logic conditions are present. Any LOW input forces Y LOW.
Voltage domain
VCC is 1.65 V to 5.5 V for operation. VIH and VIL limits change with VCC; use the complete threshold table.
Power-down behavior
Ioff is specified with VCC = 0 V and VI or VO = 5.5 V to limit current through the powered-down device path.
Package choice
SOT23-6 and SC70-6 share the pin assignment but have different markings, footprints and thermal impedances.
Source interpretation: One sentence in the PDF says the device “contains three AND gates,” but the title, symbol, eight-state truth table and six-pin assignment consistently define one 3-input AND gate. This page follows those mutually consistent technical definitions.

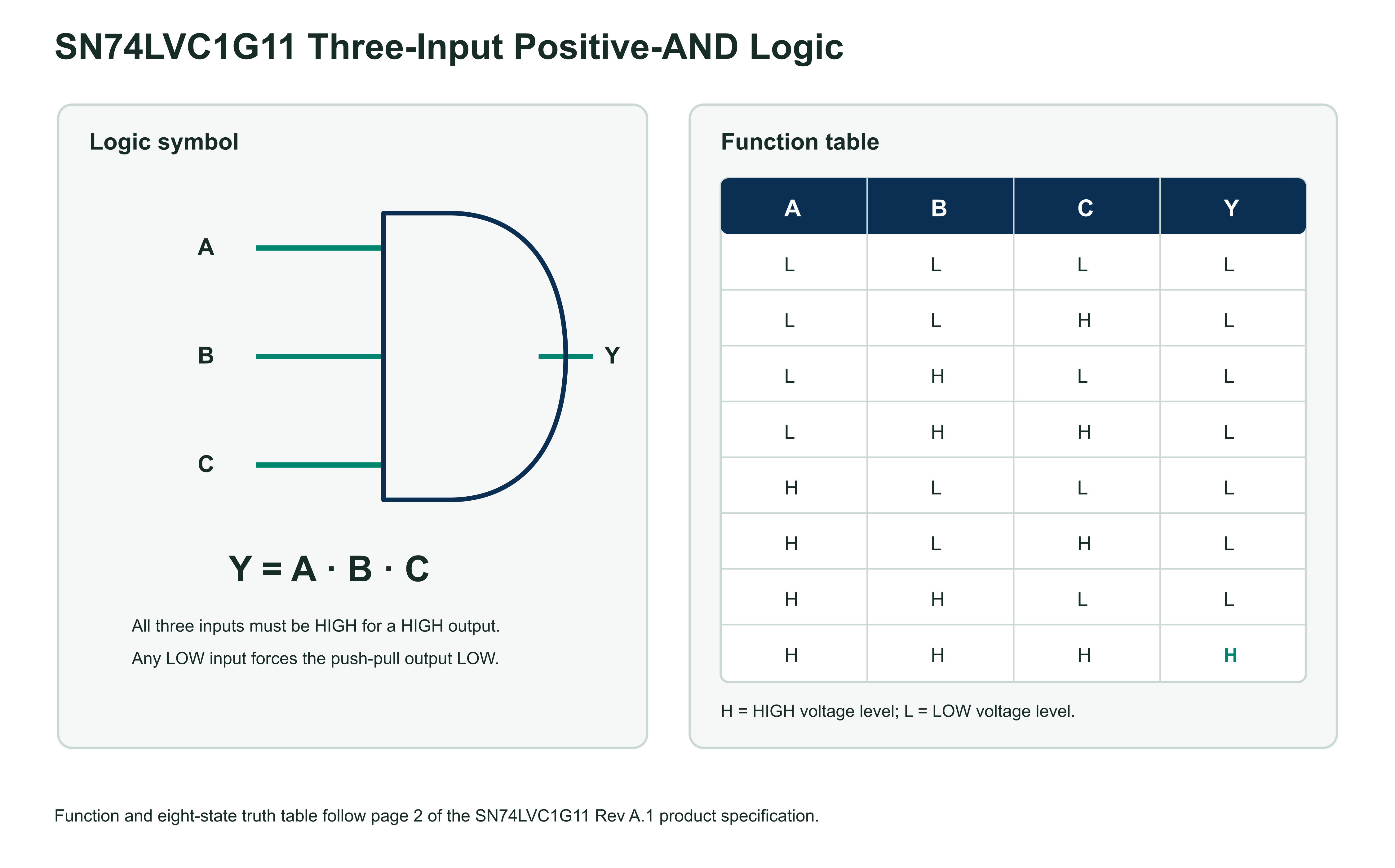

Logic Function, Truth Table and Pin Assignment
In positive logic, Y = A · B · C. Y remains LOW for seven input combinations and becomes HIGH only when A, B and C are all HIGH.

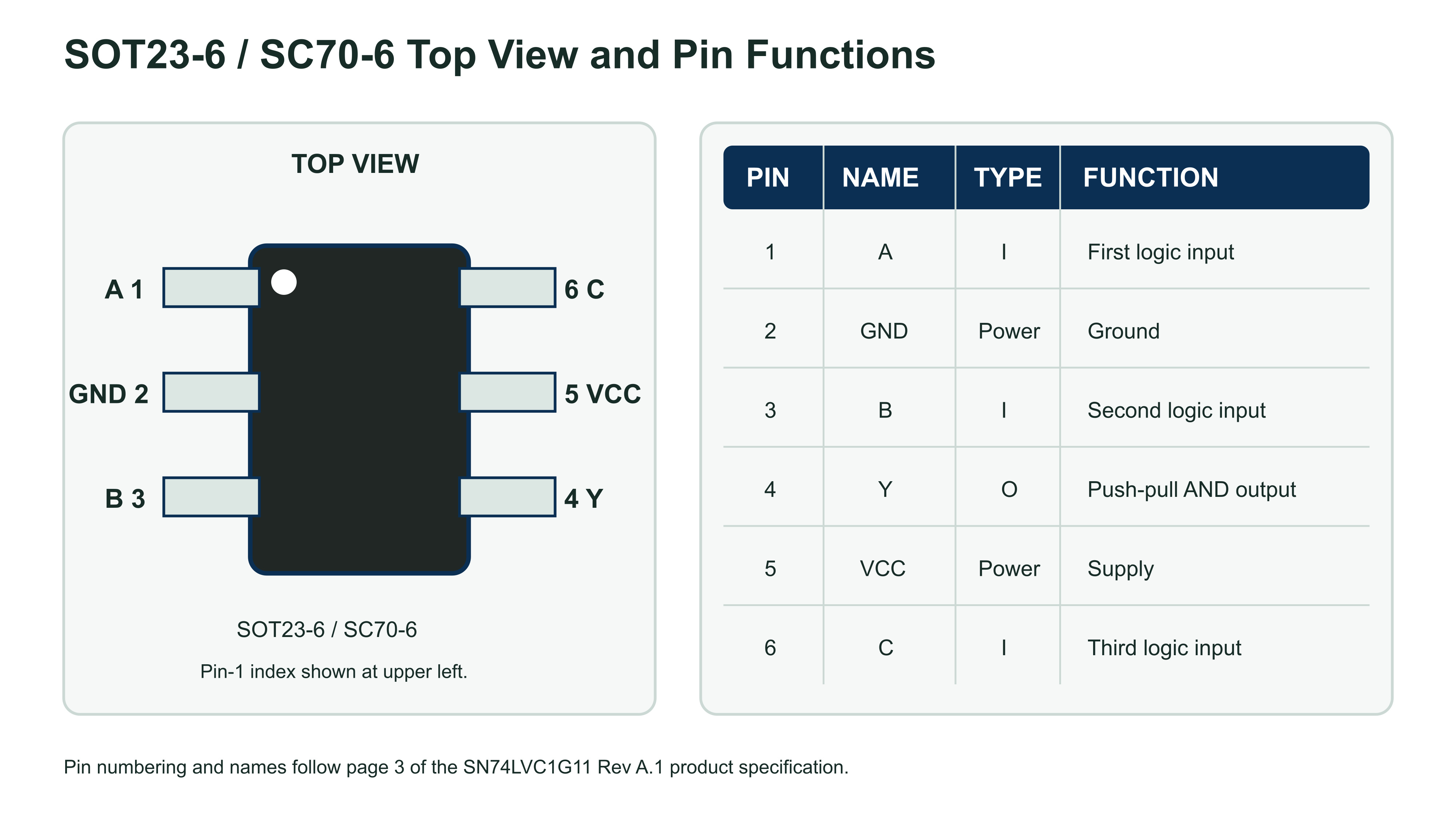

| Pin | Name | Type | Function | Engineering note |
|---|---|---|---|---|
| 1 | A | Input | First positive-logic input | Hold at VCC or GND when unused. |
| 2 | GND | Power | Ground | Use a short return to the local bypass capacitor. |
| 3 | B | Input | Second positive-logic input | Hold at VCC or GND when unused. |
| 4 | Y | Output | Push-pull AND output | Do not connect to another active output. |
| 5 | VCC | Power | Supply | Place local decoupling near pins 5 and 2. |
| 6 | C | Input | Third positive-logic input | Hold at VCC or GND when unused. |
Ordering Codes and Package Selection
| Ordering number | Temperature range | Package | Top marking | MSL | Packing |
|---|---|---|---|---|---|
| SN74LVC1G11DCKR | -40 °C to +125 °C | SC70-6 / SOT363 equivalent | C3J | MSL 3 | Tape and reel, 3,000 units |
| SN74LVC1G11DBVR | -40 °C to +125 °C | SOT23-6 | C115 | MSL 3 | Tape and reel, 3,000 units |

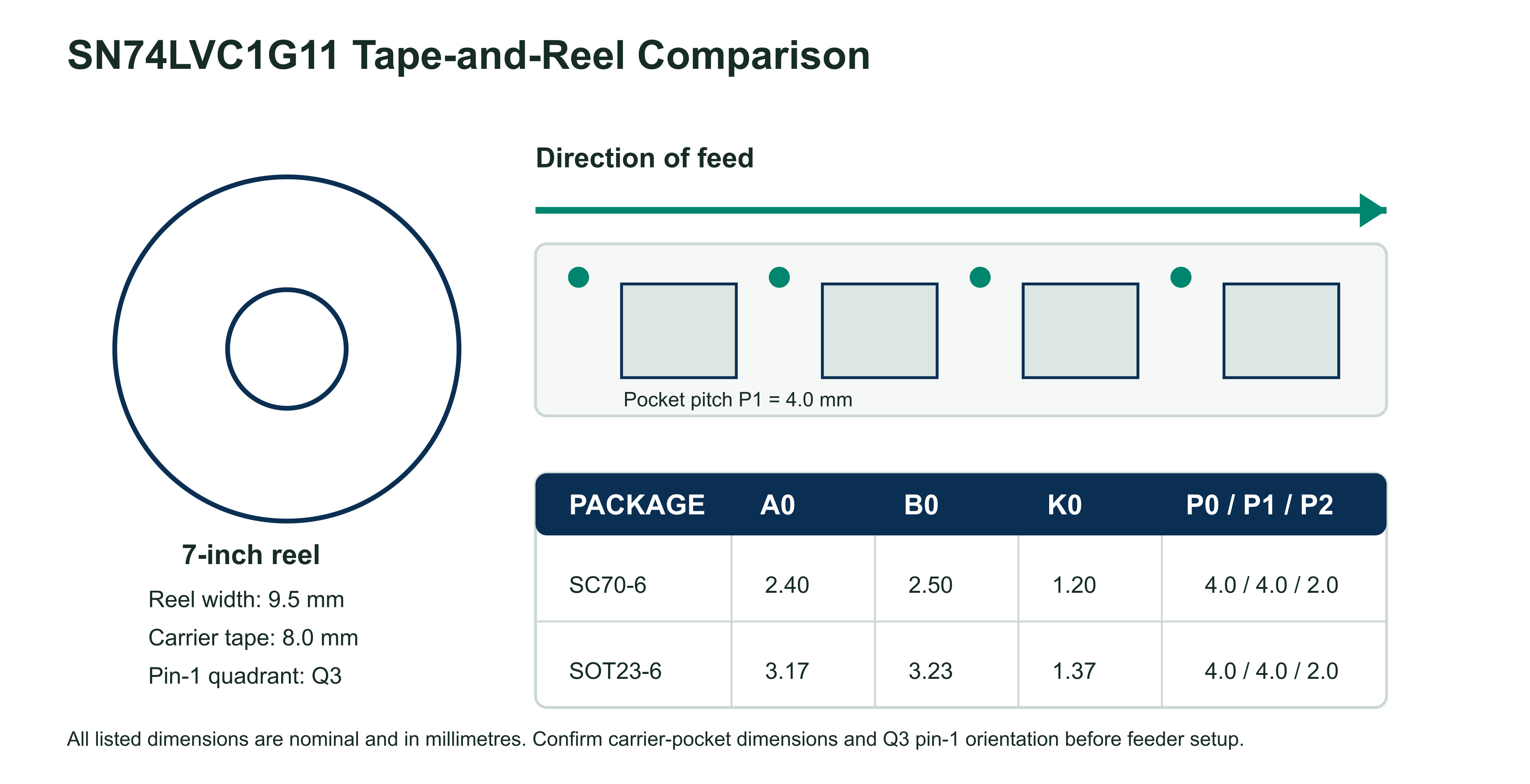

Additional lot, date, vendor, logo or environmental markings may appear. Confirm the full ordering code, six-pin package drawing, top marking and Q3 tape orientation during receiving inspection.
Recommended Operating Conditions and Absolute Limits
Recommended operating conditions define the functional design range. Absolute maximum ratings are stress limits only and do not establish normal operation or long-term reliability.
| Parameter | Condition | Minimum | Maximum | Unit |
|---|---|---|---|---|
| Supply voltage, VCC | Operating | 1.65 | 5.5 | V |
| Supply voltage, VCC | Data retention only | 1.5 | 5.5 | V |
| Input voltage, VI | Operating | 0 | 5.5 | V |
| Output voltage, VO | Operating | 0 | VCC | V |
| Input rise/fall, tr or tf | VCC = 1.8 V ±0.15 V or 2.5 V ±0.2 V | - | 20 | ns/V |
| Input rise/fall, tr or tf | VCC = 3.3 V ±0.3 V | - | 10 | ns/V |
| Input rise/fall, tr or tf | VCC = 5 V ±0.5 V | - | 5 | ns/V |
| Ambient temperature, TA | Operating | -40 | 125 | °C |
Absolute maximum and handling limits
| Parameter | Condition | Minimum | Maximum | Unit |
|---|---|---|---|---|
| Supply voltage | VCC | -0.5 | 6.5 | V |
| Input voltage | VI | -0.5 | 6.5 | V |
| Output voltage | High-impedance or power-off state | -0.5 | 6.5 | V |
| Output voltage | HIGH or LOW state | -0.5 | VCC + 0.5 | V |
| Input clamp current | VI < 0 V | -50 | mA | |
| Output clamp current | VO < 0 V | -50 | mA | |
| Continuous output current | IO | ±50 | mA | |
| Continuous VCC or GND current | - | ±100 | mA | |
| Junction temperature | TJ | -65 | 150 | °C |
| Storage temperature | Tstg | -65 | 150 | °C |
DC Characteristics and Logic Levels
Unless otherwise noted, full-range limits apply from -40 °C to +125 °C. Typical values are characterized at +25 °C and are not guaranteed production limits.
| VCC range | VIH minimum | VIL maximum | Engineering interpretation |
|---|---|---|---|
| 1.65 V to 1.95 V | 0.65 × VCC | 0.35 × VCC | Thresholds scale with supply. |
| 2.3 V to 2.7 V | 1.7 V | 0.7 V | Use the fixed guaranteed limits. |
| 3.0 V to 3.6 V | 2.0 V | 0.8 V | Use the fixed guaranteed limits. |
| 4.5 V to 5.5 V | 0.70 × VCC | 0.30 × VCC | Thresholds scale with supply. |
Output levels, leakage, capacitance and supply current
| Parameter | Test condition | VCC | Temperature | Limit or typical value | Unit |
|---|---|---|---|---|---|
| VOH | IOH = -100 µA | 1.65 V to 5.5 V | Full | Minimum VCC - 0.1 V | V |
| VOH | IOH = -4 / -8 / -16 / -24 / -32 mA | 1.65 / 2.3 / 3.0 / 3.0 / 4.5 V | Full | Minimum 1.2 / 1.9 / 2.4 / 2.3 / 3.8 V | V |
| VOL | IOL = 100 µA | 1.65 V to 5.5 V | Full | Maximum 0.1 V | V |
| VOL | IOL = 4 / 8 / 16 / 24 / 32 mA | 1.65 / 2.3 / 3.0 / 3.0 / 4.5 V | Full | Maximum 0.45 / 0.30 / 0.40 / 0.55 / 0.55 V | V |
| II | Any input at 5.5 V or GND | 0 V to 5.5 V | +25 °C / Full | Typical ±0.1 µA / maximum ±5 µA | µA |
| Ioff | VI or VO = 5.5 V | 0 V | +25 °C / Full | Typical ±0.1 µA / maximum ±10 µA | µA |
| ICC | VI = 5.5 V or GND, IO = 0 | 1.65 V to 5.5 V | +25 °C / Full | Typical 0.1 µA / maximum 10 µA | µA |
| ΔICC | One input at VCC - 0.6 V; other inputs at VCC or GND | 3 V to 5.5 V | Full | Maximum 500 µA | µA |
| Ci | VI = VCC or GND | 3.3 V | +25 °C | Typical 4 | pF |
AC Switching and Test Conditions

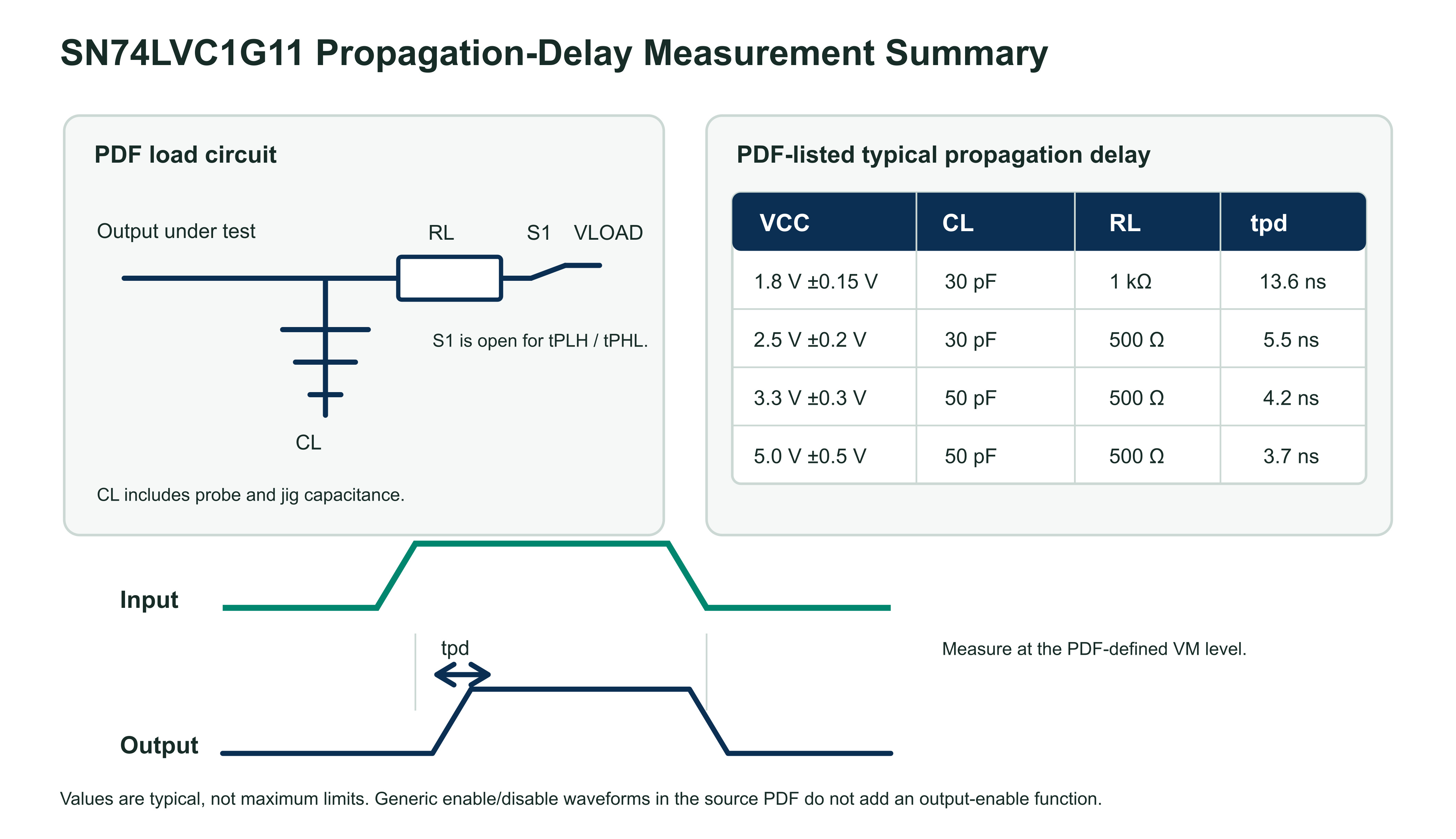

The Rev A.1 PDF lists typical propagation-delay values under the stated supply, resistor and capacitive loads. Because no maximum tpd values are given in the table, these numbers are engineering reference values rather than guaranteed worst-case timing limits.
| Parameter | VCC | Load condition | Value status | Listed value | Unit |
|---|---|---|---|---|---|
| Propagation delay, tpd | 1.8 V ±0.15 V | CL = 30 pF, RL = 1 kΩ | Typical | 13.6 | ns |
| Propagation delay, tpd | 2.5 V ±0.2 V | CL = 30 pF, RL = 500 Ω | Typical | 5.5 | ns |
| Propagation delay, tpd | 3.3 V ±0.3 V | CL = 50 pF, RL = 500 Ω | Typical | 4.2 | ns |
| Propagation delay, tpd | 5.0 V ±0.5 V | CL = 50 pF, RL = 500 Ω | Typical | 3.7 | ns |
| Power-dissipation capacitance, Cpd | 1.8 / 2.5 / 3.3 / 5.0 V | f = 10 MHz | Typical | 16 / 18 / 18 / 20 | pF |
Timing boundary: Do not convert the listed typical values into a guaranteed maximum frequency. The PDF includes generic enable/disable waveforms, but SN74LVC1G11 has no output-enable pin; validate finished-board timing over voltage, load and temperature.

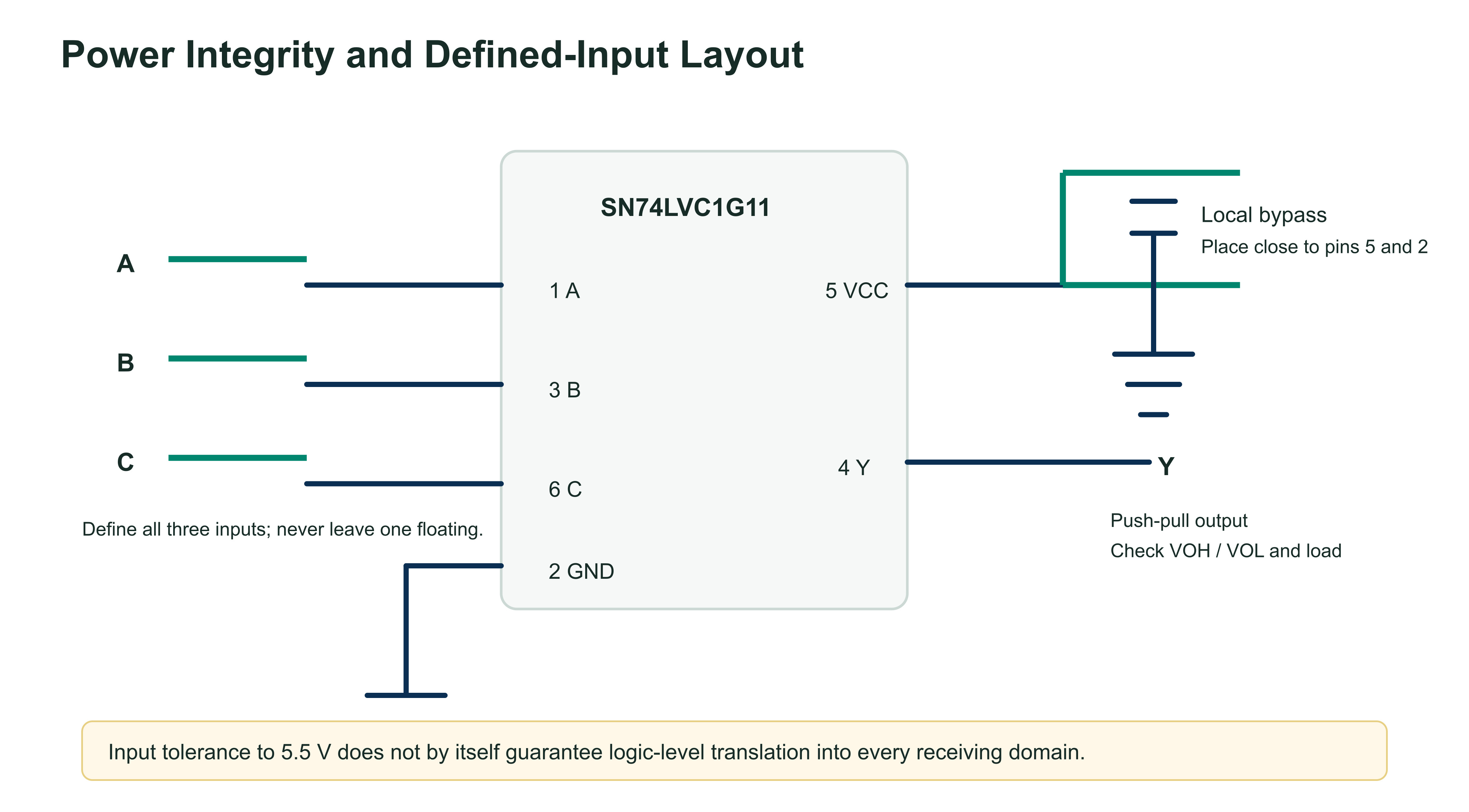

Power Integrity, Input Handling and PCB Layout
The following layout is application guidance rather than a guaranteed reference circuit. Use the electrical tables for limits and validate the complete board power-distribution network and receiving logic interface.
- Do not leave inputs floating: the PDF requires all unused inputs to be held at VCC or GND.
- Apply the correct edge-rate limit: the maximum tr/tf entry changes from 20 ns/V at low supply to 5 ns/V at 5 V.
- Check receiving VIH: a 5.5 V-tolerant input does not guarantee that a low-VCC output can drive every higher-voltage receiver.
- Budget transition current: ΔICC is listed as 500 µA maximum with one input at VCC - 0.6 V and the other inputs at VCC or GND.
- Prevent output contention: Y is push-pull and has no output-enable control.
- Validate partial power-down: Ioff limits the device path; other PCB components can still create back-power paths.

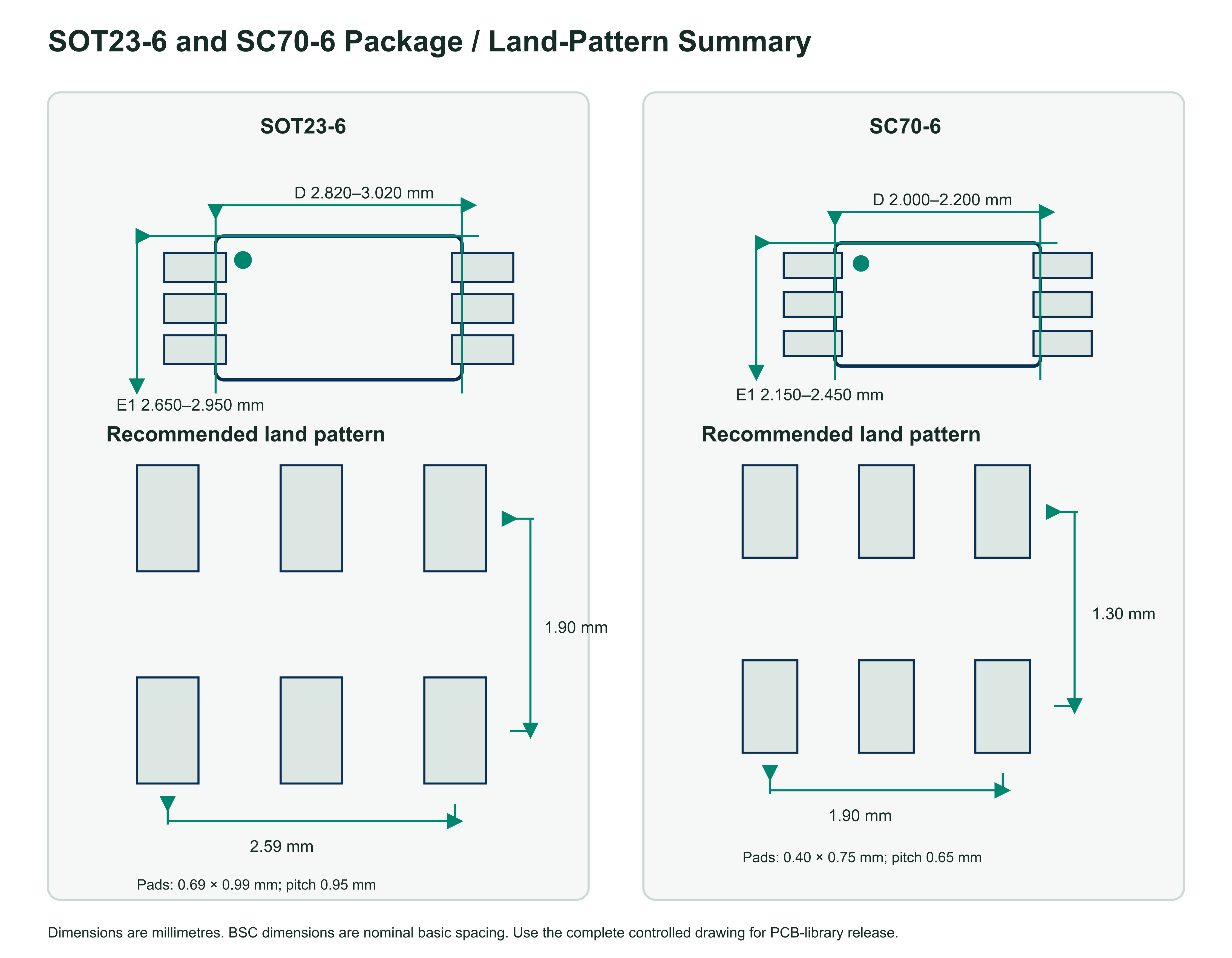

SOT23-6 and SC70-6 Packages, Land Patterns and Packing
Both green six-pin package options share the same logical pin assignment but use different body dimensions, lead pitch, top marking and thermal impedance. Do not substitute one footprint for the other.
| Dimension | SOT23-6 | SC70-6 | Unit |
|---|---|---|---|
| Overall height A | 1.050 to 1.250 | 0.900 to 1.100 | mm |
| Body length D | 2.820 to 3.020 | 2.000 to 2.200 | mm |
| Body width E | 1.500 to 1.700 | 1.150 to 1.350 | mm |
| Overall lead span E1 | 2.650 to 2.950 | 2.150 to 2.450 | mm |
| Lead pitch e | 0.950 BSC | 0.650 BSC | mm |
| Outer lead pitch e1 | 1.800 to 2.000 | 1.300 BSC | mm |
| Lead width b | 0.300 to 0.500 | 0.150 to 0.350 | mm |
| Lead thickness c | 0.100 to 0.200 | 0.080 to 0.150 | mm |
| Lead length L | 0.300 to 0.600 | 0.260 to 0.460 | mm |
Application Guidance and Design Limitations
The Rev A.1 specification lists active noise elimination, barcode scanners, blood-pressure monitors, CPAP machines, fingerprint identification and network-attached storage. These are possible use contexts, not end-product approvals.
Active Noise EliminationQualify three digital control conditions. The gate does not process the analog audio path.
Barcode ScannersCombine ready, trigger and interlock states after checking thresholds, edge rate and load.
Blood-Pressure MonitorsUse only in non-safety logic paths after complete medical-system risk and qualification review.
CPAP MachinesCombine supervisory states; do not treat this standard logic gate as a life-support safety element.
Fingerprint IdentificationQualify detect, enable and system-ready conditions while respecting power sequencing.
Network-Attached StorageUse for compact board-level status or control logic, not high-speed serial data switching.SN74LVC1G11 Engineering FAQs
What logic function does SN74LVC1G11 implement?
It is one 3-input positive-AND gate. Y = A · B · C, so Y is HIGH only when A, B and C are all HIGH.
What supply range is recommended?
VCC is specified from 1.65 V to 5.5 V for operation. The separate 1.5 V to 5.5 V entry is identified as data retention only.
Can the inputs accept 5.5 V when VCC is lower?
The recommended input range is 0 V to 5.5 V and input leakage is characterized across VCC = 0 V to 5.5 V. Still verify output-level compatibility and all board-level sequencing paths.
Is SN74LVC1G11 a Schmitt-trigger AND gate?
No. The specification does not provide hysteresis thresholds. Use a Schmitt-trigger-qualified device when slow or noisy input transitions require hysteresis.
Does the output support tri-state or open-drain operation?
No. Y is a push-pull output with no enable pin. Do not connect it to another actively driven output or use it for wired logic.
What propagation-delay values are listed?
The PDF lists typical tpd values of 13.6 ns at 1.8 V, 5.5 ns at 2.5 V, 4.2 ns at 3.3 V and 3.7 ns at 5 V under the stated loads. It does not list maximum tpd values in that table.
What does Ioff provide?
Ioff is specified with VCC = 0 V and VI or VO = 5.5 V, with ±10 µA maximum over the full temperature range. It limits the device path but does not eliminate other board-level back-power routes.
Which package should be selected?
SN74LVC1G11DBVR is SOT23-6 with C115 marking. SN74LVC1G11DCKR is SC70-6, equivalent to SOT363, with C3J marking. Both are MSL 3 and packed 3,000 units per reel.
Can unused inputs be left open?
No. The PDF explicitly requires all unused inputs to be held at VCC or GND.
Do the listed applications establish product certification?
No. The application list identifies possible use contexts only. Qualification, safety, EMC, reliability and production validation remain system responsibilities.
This page summarizes the SN74LVC1G11 Rev A.1 product specification for component evaluation and engineering reference. It does not replace the complete controlled specification. Confirm the current revision, ordering code, marking, pin assignment, logic limits, absolute maximum ratings, DC and AC conditions, package tolerances, PCB layout, assembly process and qualification requirements before production release.
